RICE TRANSPLANTER

插秧机

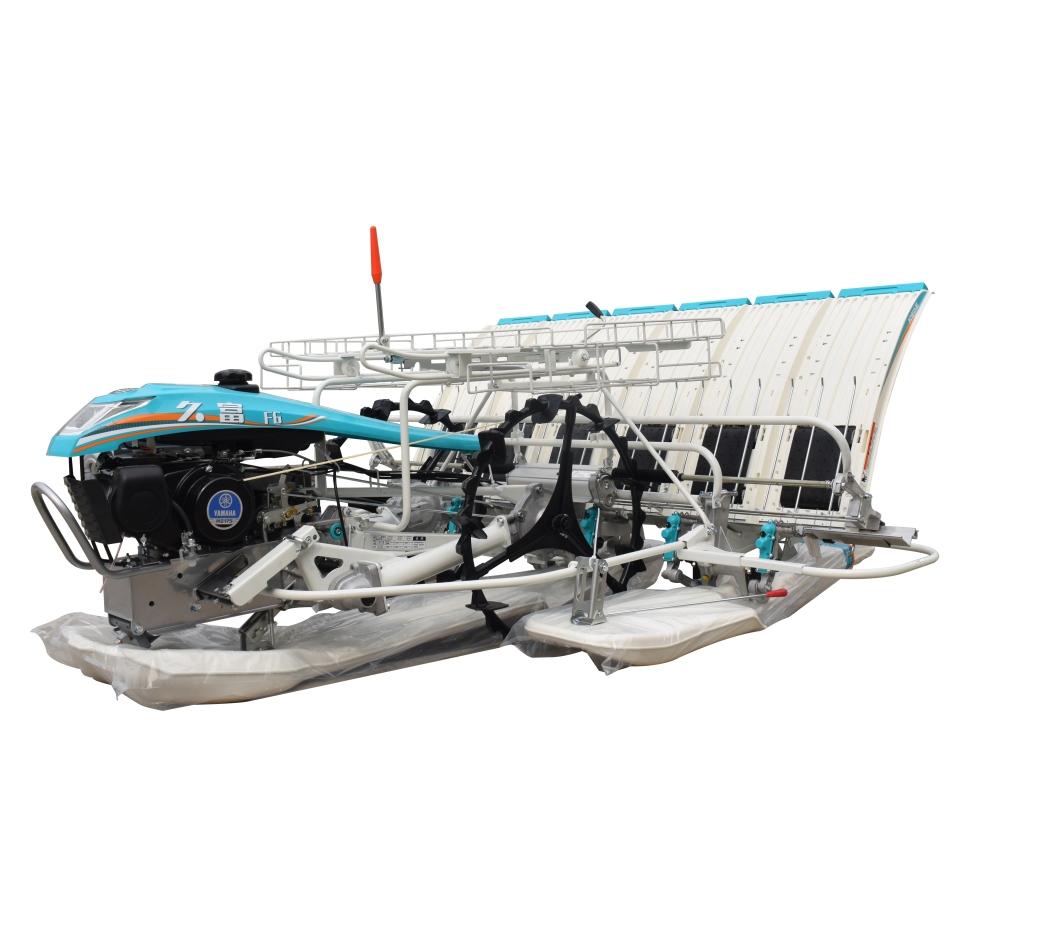

手扶式增产型摆栽两用插秧机2ZS-6(F6)

手扶式增产型摆栽两用插秧机2ZS-6(F6)

久富农机F6六行手扶式插秧机,钵苗毯苗两用机型是农机专业合作社,农机作业大户,种粮大户等种植水稻的好帮手。  在同类机型中重量轻,操作方便,可靠性佳。  采用原厂雅马哈汽油发动机,采用全齿轮传动结构,动力损失小,维修方便  标准配液压自动平衡机构,确保即使在秧田不平整时也能保持插秧深度一致。行距轻松调整可选,适应南方和北方不同的农艺需求  手扶水稻插秧机结构简单,操控性好,性能可

产品详情

久富农机F6六行手扶式插秧机,钵苗毯苗两用机型是农机专业合作社,农机作业大户,种粮大户等种植水稻的好帮手。

在同类机型中重量轻,操作方便,可靠性佳。

采用原厂雅马哈汽油发动机,采用全齿轮传动结构,动力损失小,维修方便

标准配液压自动平衡机构,确保即使在秧田不平整时也能保持插秧深度一致。行距轻松调整可选,适应南方和北方不同的农艺需求


手扶水稻插秧机结构简单,操控性好,性能可靠,配件市场成熟,采用国内同行业成熟产品的工艺设计和制造,在结合用户意见的基础上进行了多项优化,标准配置国际名牌--雅马哈发动机

Jofae F6 six row walking seedling transplanter, pot seedling / blanket seedling dual-use model is a good helper for agricultural machinery professional cooperatives, large agricultural machinery operators, grain growers and other large rice planting households.

It is light in weight, easy to operate and reliable in similar models.

The original Yamaha gasoline engine is adopted, and the full gear transmission structure is adopted, so the power loss is small and the maintenance is convenient



The standard hydraulic automatic balancing mechanism ensures that the transplanting depth is consistent even when the rice field is uneven. The rows pacing can be easily adjusted to meet the different agronomic needs of the south and the north

Walking rice transplanter is simple in structure, good in operation, reliable in performance, and mature in accessory market. It adopts the process design and manufacturing of mature products in the same industry in China, and has made many optimizations on the basis of combining users' opinions. The standard configuration is international famous brand Yamaha engine


“久富”牌插秧机特点:

   Characteristics of "Jofae" rice transplanter:

1、一机两用,即能插钵苗也能插毯苗。

one machine can be used for two purposes, which can be used to insert both potted seedlings and carpet seedlings.

2、结构合理。插秧不伤钵体,不缓苗,不补苗,分蘖多,根系发达,抗倒伏。

The structure is reasonable. Transplanting does not damage the pot body, does not slow seedlings, does not replenish seedlings, has many tillers, developed roots, and is resistant to lodging.

3、独特的钵苗输秧控制系统,使插秧时取苗准确,不伤钵体,这是其它同类插秧机所没有的。

The unique control system for transplanting rice seedlings by pot ensures that the seedlings can be taken accurately without damaging the pot, which is not found in other similar transplanters.

4、 钵苗插秧,成熟度好,增产明显,与一般平盘插秧相比可增产8—15%,特别适合北方寒冷地区和南方冬水田的插秧作业。

Pot seedling transplanting has good maturity and obvious yield increase. Compared with ordinary flat plate transplanting, it can increase yield by 8-15%, which is especially suitable for transplanting in winter paddy fields in northern cold regions and southern China.

5、是种粮大户,农机作业大户,农机专业合作社的可靠帮手。

It is a reliable helper for large grain growers, large agricultural machinery operators, and agricultural machinery cooperatives


F6水稻插秧机产品技术规格确认表

                                                                                                F6 Rice transplanter technical specification confirmation form

序 号(No.

技 术 规 格(specification

设 计 值(Design value

1

规 格 型 号(model

2ZS-6(F6)

2

结 构 型 式(structure

手扶步进式(Walking hand-held

3

配 套 发 动 机(Engine

生 产 企 业(manufacturing

雅马哈动力机械有限公司(YAMAHA

牌 号 型 号(type

MZ175-J-1

结 构 型 式(structure

风冷4冲程OHV发动机

                    (Fan-cooled, 4 stroke, OHV engine

标 定 功 率(Rated power),kw

3.3

标 定 转 速(Rated rotation speed),r/min

3600

燃 油 种 类(Fuel type

93#无铅汽油及以上

                      (93# unleaded gasoline or better)

4

外 形 尺 寸(长 * 宽 * 高)Outline (L*W*H),mm

2368*1930*910

5

结 构 质 量(weight),kg

188

6

工 作 行 数(Transplanting lines),行

6

7

行 距(Clearance of lines),mm

300

8

株 距(Clearance of rows),mm

140,160,180,210,240,280

9

插 秧 深 度(Depth of transplanting),mm

7~37

10

作 业 速 度(Working speed),km/h

1.008~2.772

11

作 业 小 时 生 产 率(Working efficiency),hm²/h

0.1~0.32

12

单 位 作 业 量 燃 油 消  耗 量(Fuel consumption per hectare),kg/hm²

2.2~5.17

13

行 走 轮

                   (Waling wheeds

前 轮(Front wheels

结 构 型 式(Type of structure)

粗轮毂橡胶轮胎(Rubber wrapped wheels

直 径(diameter),mm

660

后 轮(Rear wheels

结 构 型 式(Type of structure

粗轮毂橡胶轮胎(Rubber wrapped wheels

直 径(diameter),mm

660

14

插 植 机 结 构 型 式(Type of transplanting structure

曲柄连杆机构(Crank linkage
